Plot EMG Spectral-Fatigue Regression

Source: R/emg-plot.R
plotEmgFatigue.Rd

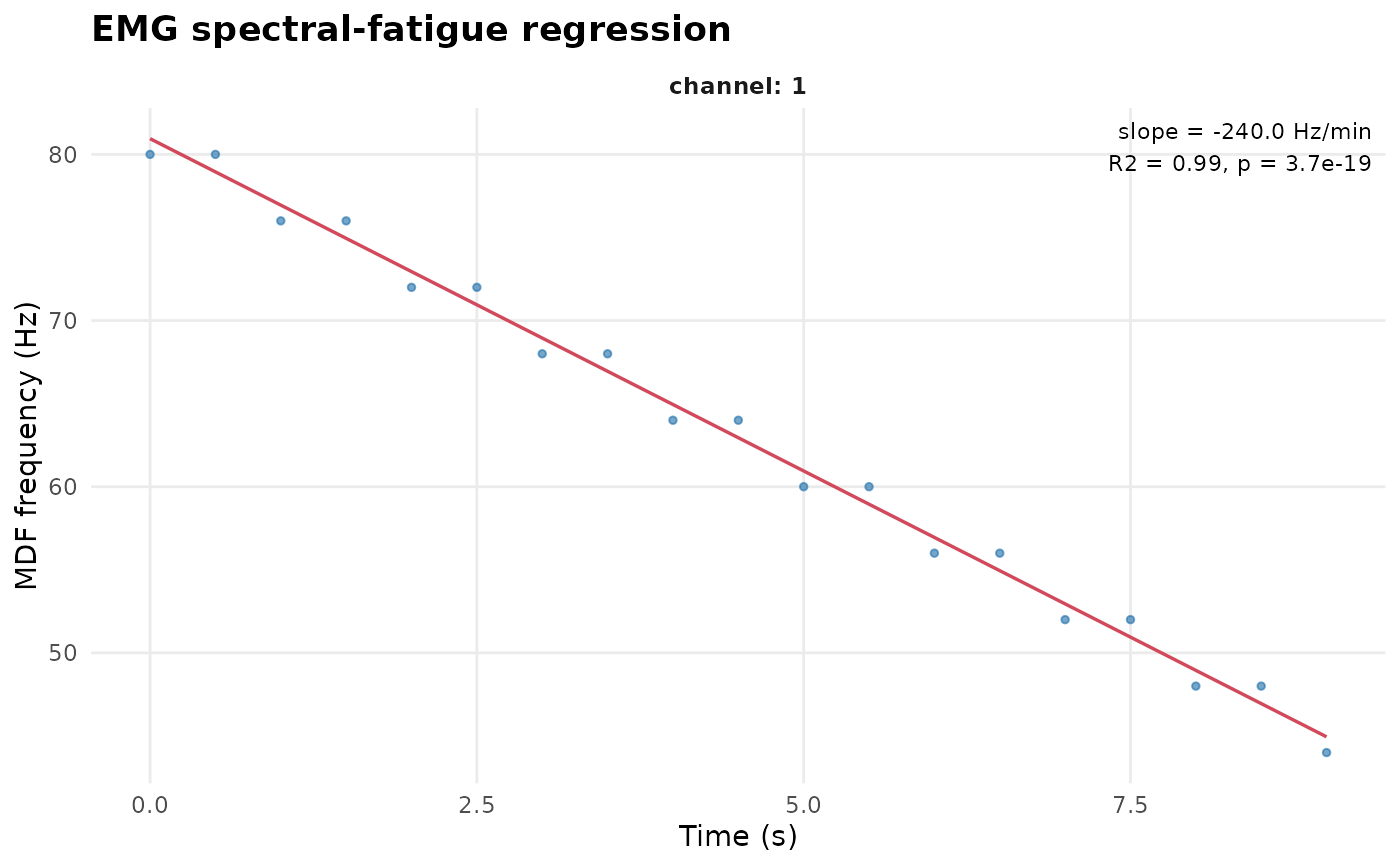

Scatters the windowed median or mean frequency against time with the fitted fatigue-regression line and slope annotation.

Usage

plotEmgFatigue(
  x,
  feature = c("mdf", "mnf"),
  window_sec = 1,
  overlap = 0.5,
  assay_name = NULL
)

Arguments

x

A PhysioExperiment object with EMG data.

feature

"mdf" (median frequency) or "mnf" (mean frequency).

window_sec, overlap

Windowing passed to emgFatigue().

assay_name

Input assay name (default: first assay).

Value

A ggplot object (faceted by channel).

References

Merletti, R. & Parker, P.A. (2004). "Electromyography: Physiology, Engineering, and Non-Invasive Applications." Wiley-IEEE Press. doi:10.1002/0471678384

See also

emgFatigue(), emgFatigueSlope()

Examples

pe <- make_emg_fatigue()
plotEmgFatigue(pe)
