Multi-channel visualization functions

Functions for visualizing multiple channels simultaneously. Plot multiple channels (butterfly or stacked)

Usage

plotMultiChannel(
  x,
  channels = NULL,
  sample = 1L,
  style = c("butterfly", "stacked"),
  offset = NULL,
  assay_name = NULL,
  colors = NULL
)

Arguments

x

A PhysioExperiment object.

channels

Integer vector of channel indices to plot. If NULL, plots all.

sample

Integer index for the sample (for 3D data).

style

Plot style: "butterfly" (overlaid) or "stacked" (offset).

offset

Numeric offset between channels for stacked plot.

assay_name

Optional assay name. If NULL, uses the default assay.

colors

Optional color vector for channels.

Value

A ggplot object.

Details

Generates a plot showing multiple channels from the signal data.

References

Wickham, H. (2016). ggplot2: Elegant Graphics for Data Analysis. Springer-Verlag New York. doi:10.1007/978-3-319-24277-4

Delorme, A. & Makeig, S. (2004). "EEGLAB: an open source toolbox for analysis of single-trial EEG dynamics including independent component analysis." Journal of Neuroscience Methods, 134(1), 9-21. doi:10.1016/j.jneumeth.2003.10.009

See also

plotSignal() for single-channel plots, plotERP() for event-related potential plots, plotTopomap() for topographic visualization.

Examples

# Create example data
pe <- PhysioExperiment(
  assays = list(raw = matrix(rnorm(500 * 4), nrow = 500)),
  colData = S4Vectors::DataFrame(label = c("Fz", "Cz", "Pz", "Oz")),
  samplingRate = 100
)

# Butterfly plot (all channels overlaid)

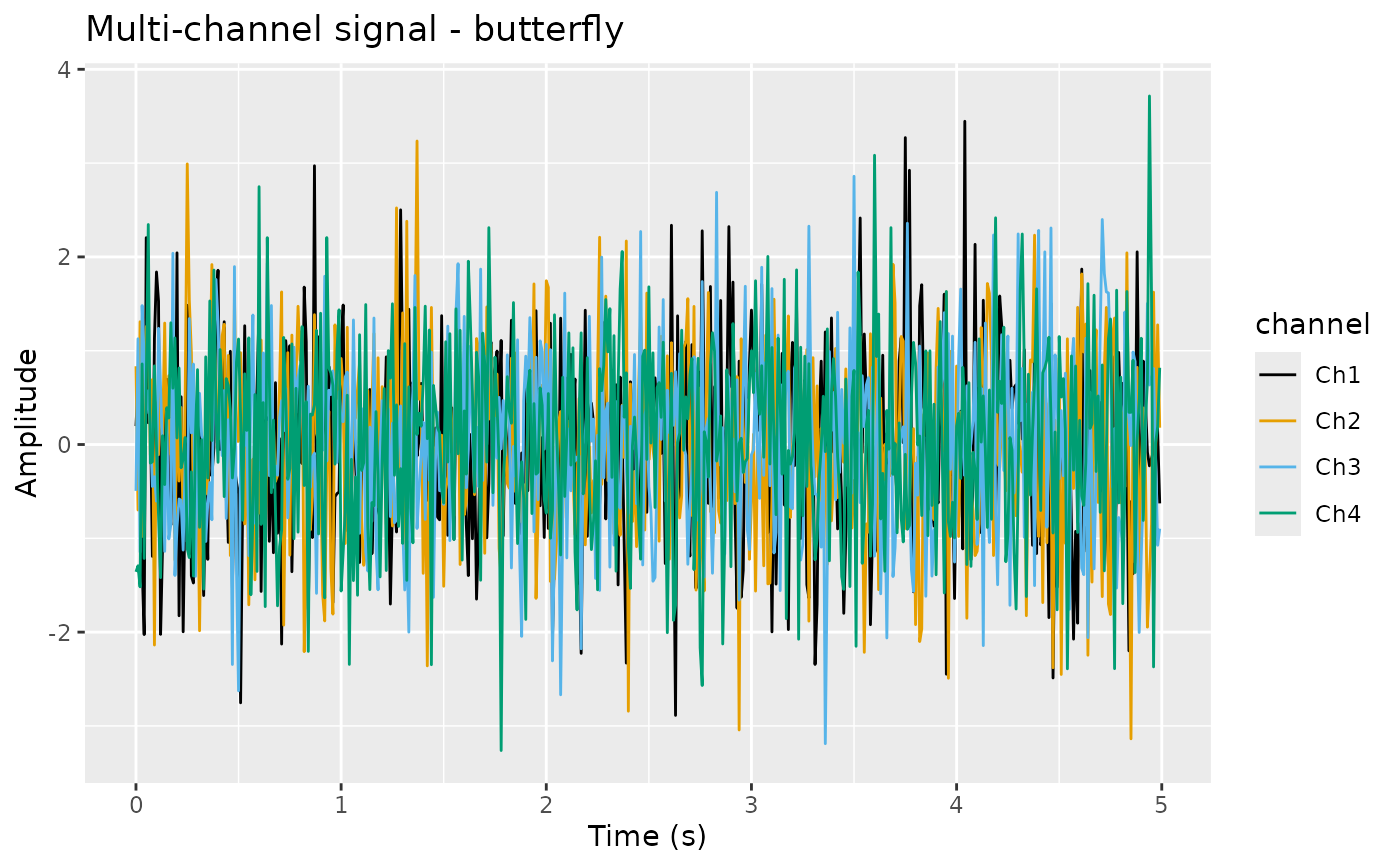

plotMultiChannel(pe, style = "butterfly")


# Stacked plot (channels offset vertically)

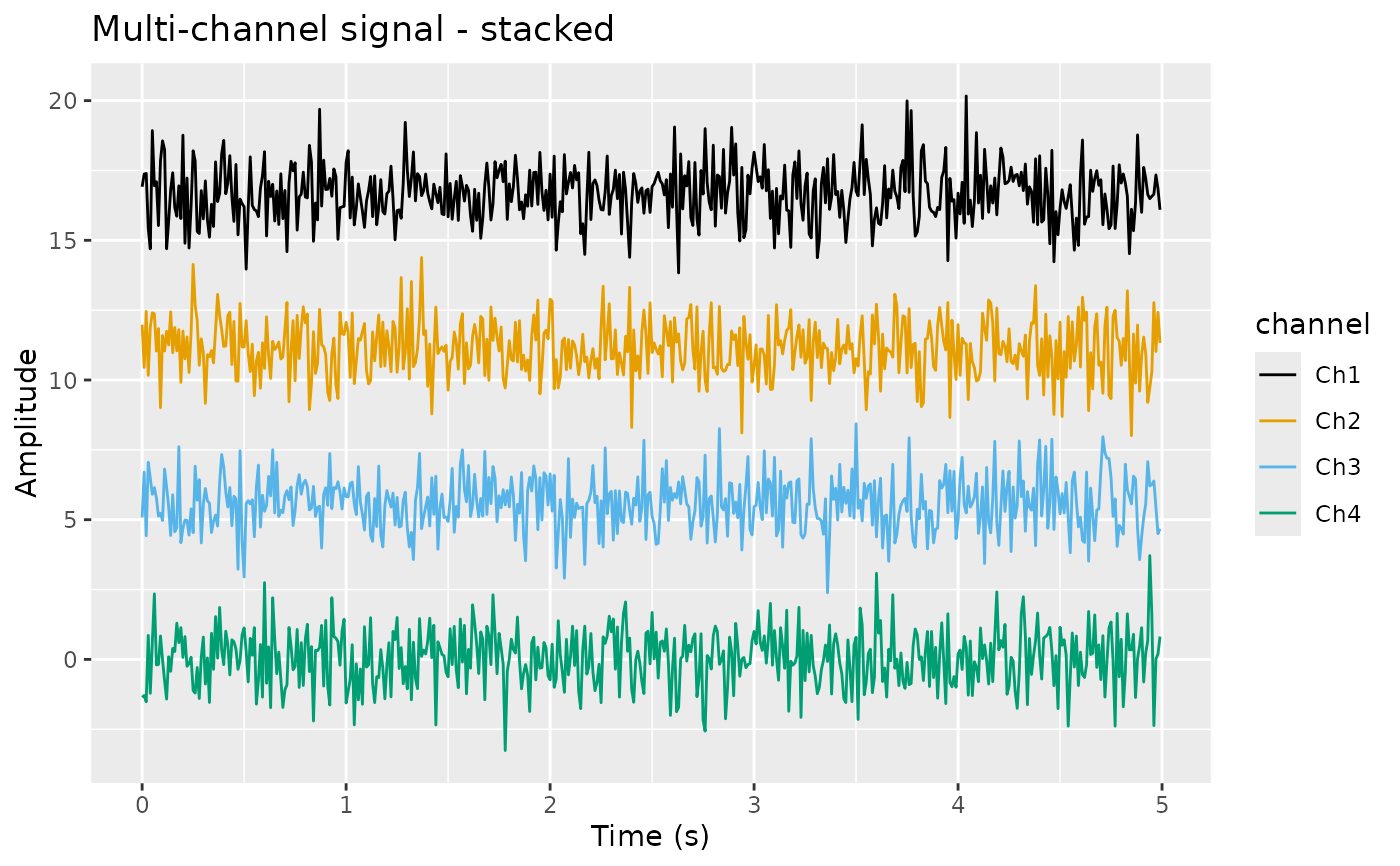

plotMultiChannel(pe, style = "stacked")


# Plot specific channels

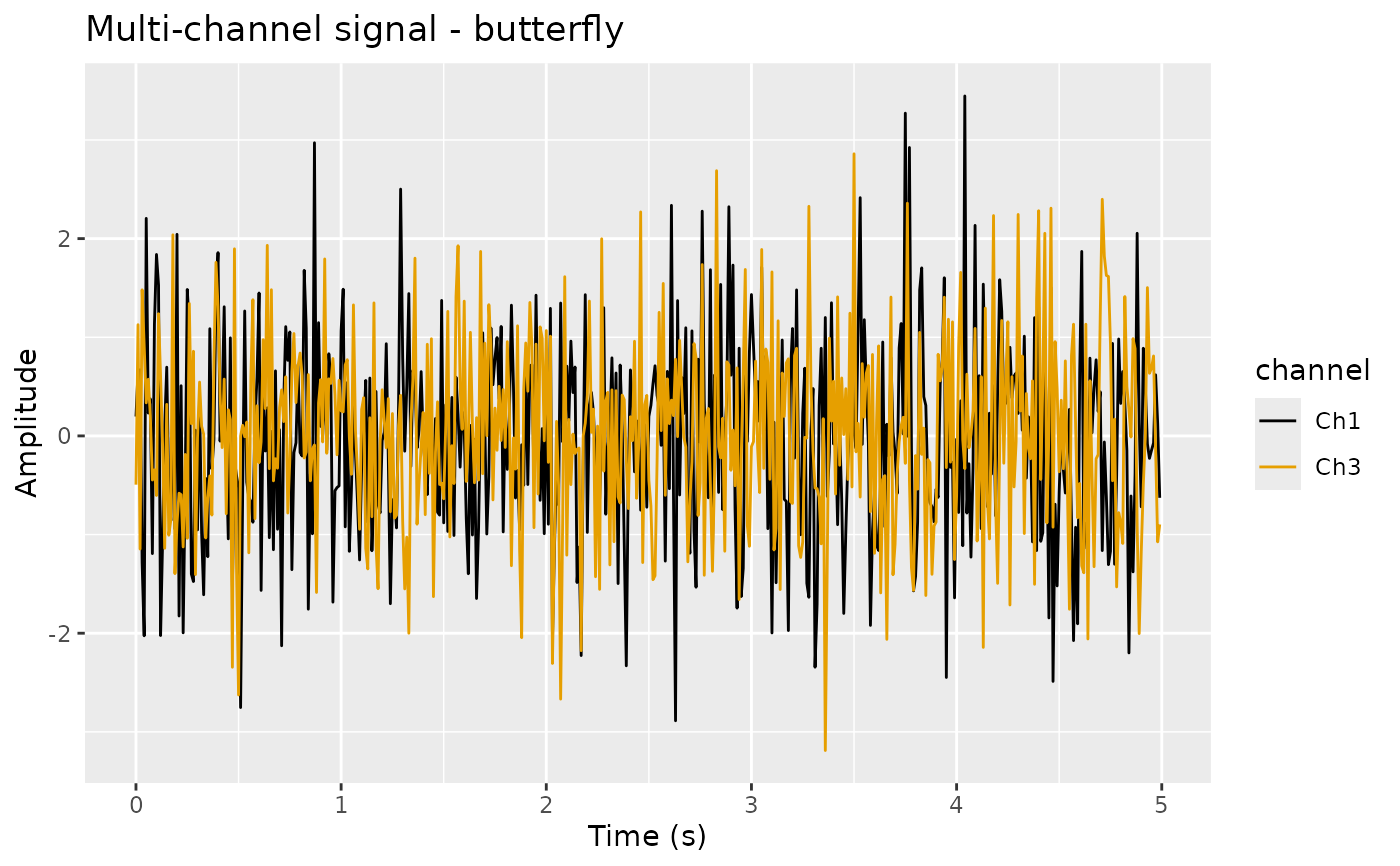

plotMultiChannel(pe, channels = c(1, 3), style = "butterfly")
