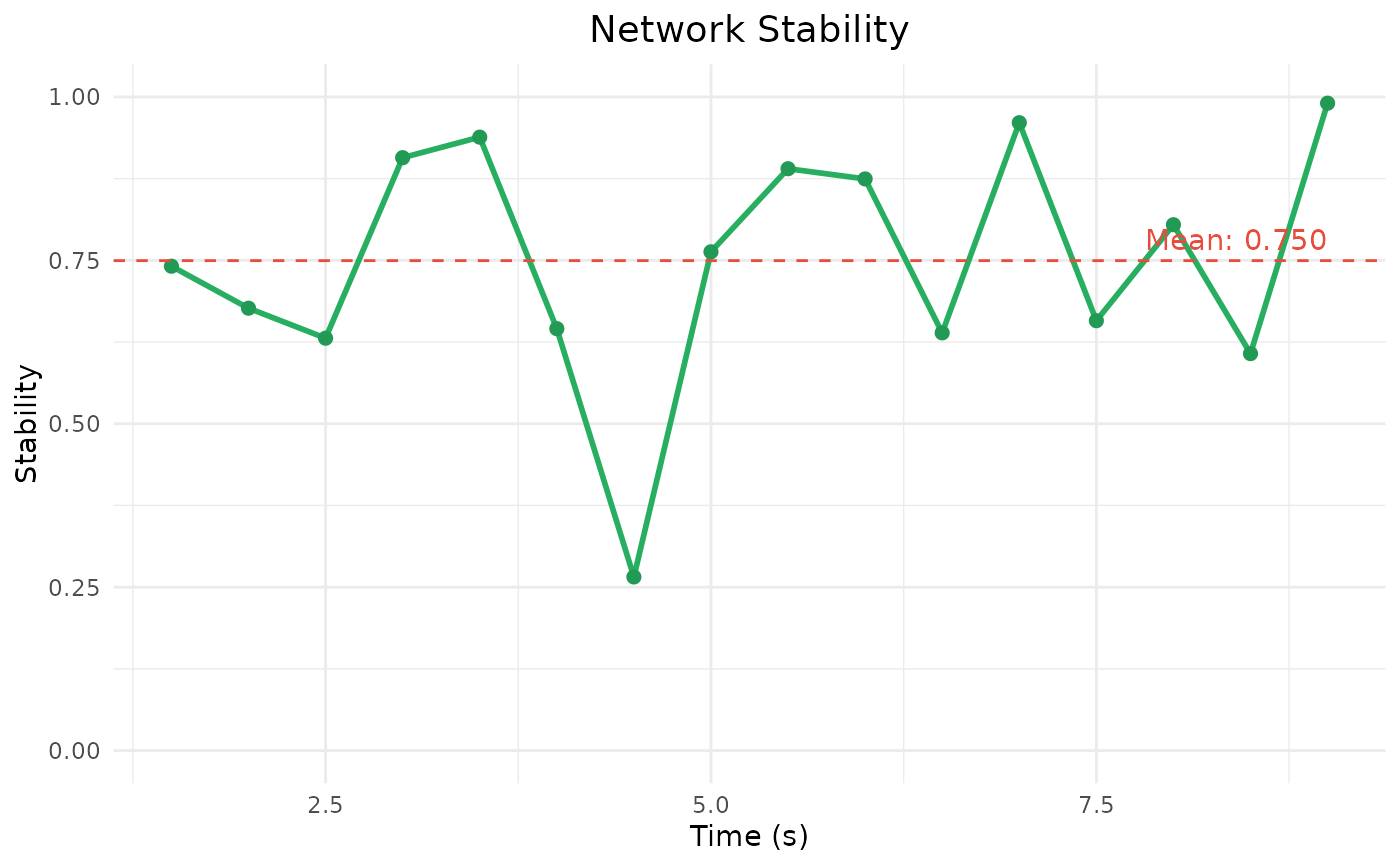

Plot network stability over time

Visualizes the temporal stability of network topology.

Usage

plotNetworkStability(stability, title = "Network Stability")

Arguments

stability

Result from temporalStability().

title

Plot title.

Value

A ggplot object.

Examples

set.seed(123)
pe <- PhysioExperiment(
  assays = list(raw = matrix(rnorm(1000 * 4), nrow = 1000, ncol = 4)),
  samplingRate = 100
)
dyn_conn <- slidingWindowConnectivity(pe, window_size = 200, step = 50)
stab <- temporalStability(dyn_conn)
plotNetworkStability(stab)
