Magnitude-squared coherence between two signals

Computes the magnitude-squared coherence between two signals, which quantifies the linear frequency-domain relationship between them. The coherence is defined as: $$C_{xy}(f) = \frac{|S_{xy}(f)|^2}{S_{xx}(f) \cdot S_{yy}(f)}$$ where $S_{xy}$ is the cross-spectral density and $S_{xx}$, $S_{yy}$ are the auto-spectral densities.

Usage

coherence(
  x,
  y = NULL,
  sr = NULL,
  freq_range = NULL,
  nperseg = 256L,
  noverlap = NULL,
  method = c("welch", "multitaper"),
  type = c("magnitude", "imaginary", "lagged"),
  modality_x = NULL,
  modality_y = NULL,
  channels_x = 1L,
  channels_y = 1L
)

Arguments

x: Numeric vector, PhysioExperiment, or MultiPhysioExperiment.
y: Numeric vector or PhysioExperiment, or NULL when x is an MPE.
sr: Numeric sampling rate in Hz (required when x/y are numeric).
freq_range: Numeric vector of length 2 giving the frequency range c(low, high) in Hz to restrict the output. NULL returns all frequencies.
nperseg: Integer segment length for Welch's method (default 256).
noverlap: Integer overlap between segments, or NULL for floor(nperseg / 2).
method: Character spectral estimation method. Currently only "welch" is implemented; "multitaper" is reserved for future use.
type: Character coherence type: "magnitude" (magnitude-squared coherence, the default), "imaginary" (the imaginary part of coherency, insensitive to zero-lag/volume-conduction coupling; Nolte et al., 2004), or "lagged" (Pascual-Marqui, 2007: Im(C) / sqrt(1 - Re(C)^2) with C the complex coherency).
modality_x: Character modality name in MPE for the x signal.
modality_y: Character modality name in MPE for the y signal.
channels_x: Integer which channel to extract from x (default 1).
channels_y: Integer which channel to extract from y (default 1).

Value

A named list with components:

coherence: Numeric vector of coherence values at each frequency: magnitude-squared coherence in $[0, 1]$ for type = "magnitude", or the (signed) imaginary / lagged coherence for the other types.
type: The coherence type computed.
frequencies: Numeric vector of corresponding frequencies in Hz.
confidence_limit: Numeric scalar giving the 95\ threshold: 1 - alpha^(1 / (L - 1)) where alpha = 0.05 and L is the number of segments (Halliday et al. 1995). Coherence values above this limit are statistically significant.
n_segments: Integer number of segments used in Welch estimation.

Details

Unlike the coherence() function in PhysioAnalysis (which computes coherence across all channel pairs within a single PhysioExperiment), this function is designed for cross-modal analysis: it takes two separate signals (or PhysioExperiment / MultiPhysioExperiment objects) and computes the pairwise coherence between them.

References

Carter, G. C. (1987). Coherence and time delay estimation. Proceedings of the IEEE, 75(2), 236–255.

Halliday, D. M., Rosenberg, J. R., Amjad, A. M., Breeze, P., Conway, B. A., & Farmer, S. F. (1995). A framework for the analysis of mixed time series/point process data – theory and application to the study of physiological tremor, single motor unit discharges and electromyograms. Progress in Biophysics and Molecular Biology, 64(2–3), 237–278.

Nolte, G., et al. (2004). Identifying true brain interaction from EEG data using the imaginary part of coherency. Clinical Neurophysiology, 115(10), 2292–2307. doi:10.1016/j.clinph.2004.04.029

Pascual-Marqui, R. D. (2007). Instantaneous and lagged measurements of linear and nonlinear dependence between groups of multivariate time series. arXiv:0711.1455.

Examples

# Two coupled 20 Hz sinusoids
sr <- 500
t <- seq(0, 10, length.out = sr * 10)
x <- sin(2 * pi * 20 * t) + 0.2 * rnorm(length(t))
y <- 0.8 * sin(2 * pi * 20 * t) + 0.2 * rnorm(length(t))
result <- coherence(x, y, sr = sr)

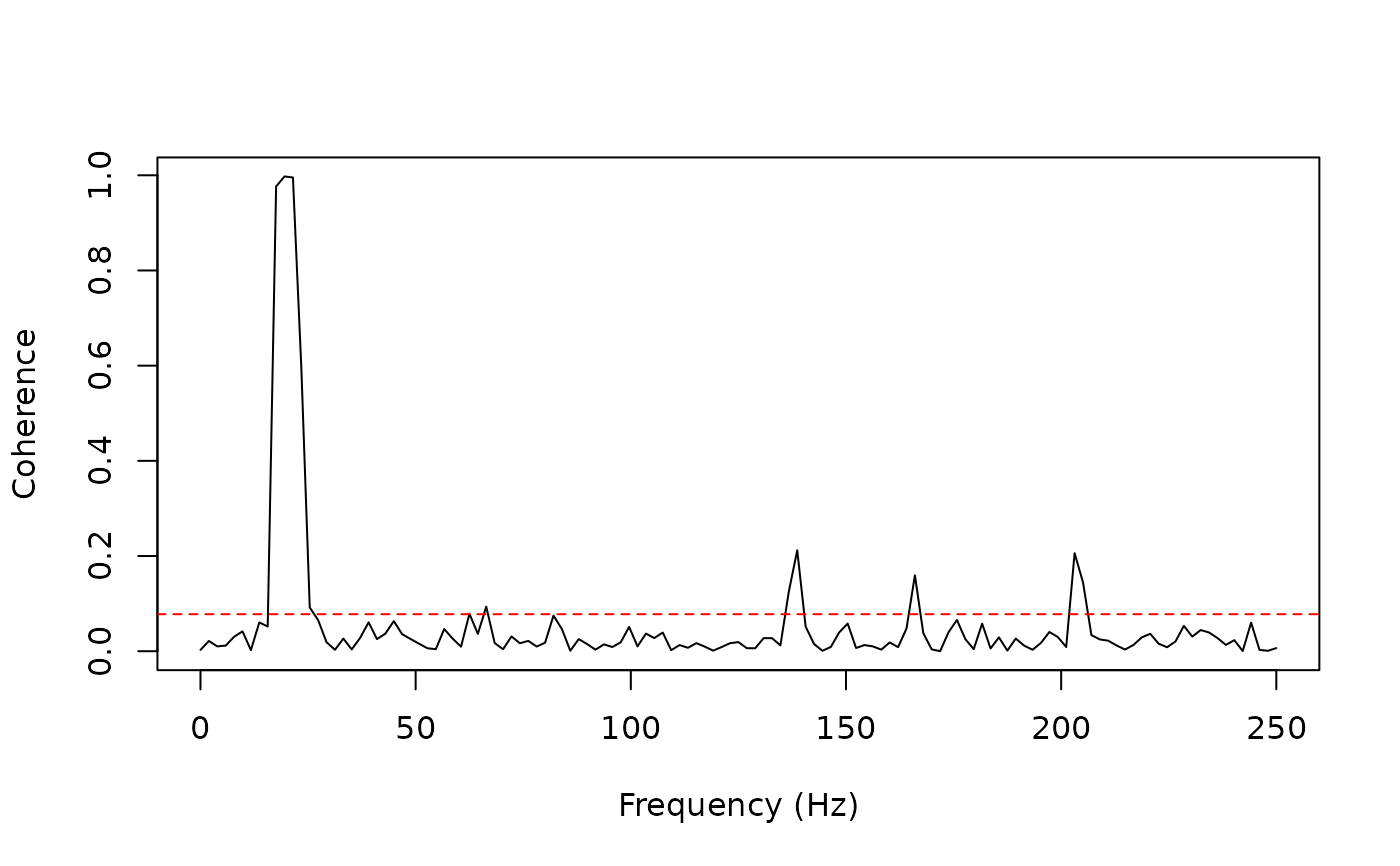

plot(result$frequencies, result$coherence, type = "l",
     xlab = "Frequency (Hz)", ylab = "Coherence")
abline(h = result$confidence_limit, lty = 2, col = "red")
