Plot MSK Network — plotMSKNetwork • PhysioMSKNet

Visualizes the musculoskeletal network with optional community coloring.

Usage

plotMSKNetwork(
  hg = NULL,
  type = c("muscle", "bone"),
  membership = NULL,
  layout = "fr",
  vertex_size = 3,
  ...
)

Arguments

hg: An MSKHypergraph object.
type: "bone" or "muscle" projection to plot.
membership: Optional community membership vector for coloring.
layout: Character, layout algorithm: "fr" (Fruchterman-Reingold), "circle", or "auto".
vertex_size: Numeric, base vertex size.
...: Additional arguments passed to plot.

Value

Invisible NULL. Produces a plot.

Examples

C <- matrix(c(1, 1, 0, 0,  0, 1, 1, 0,  0, 0, 1, 1,  1, 0, 0, 1),
            nrow = 4, dimnames = list(paste0("b", 1:4), paste0("m", 1:4)))

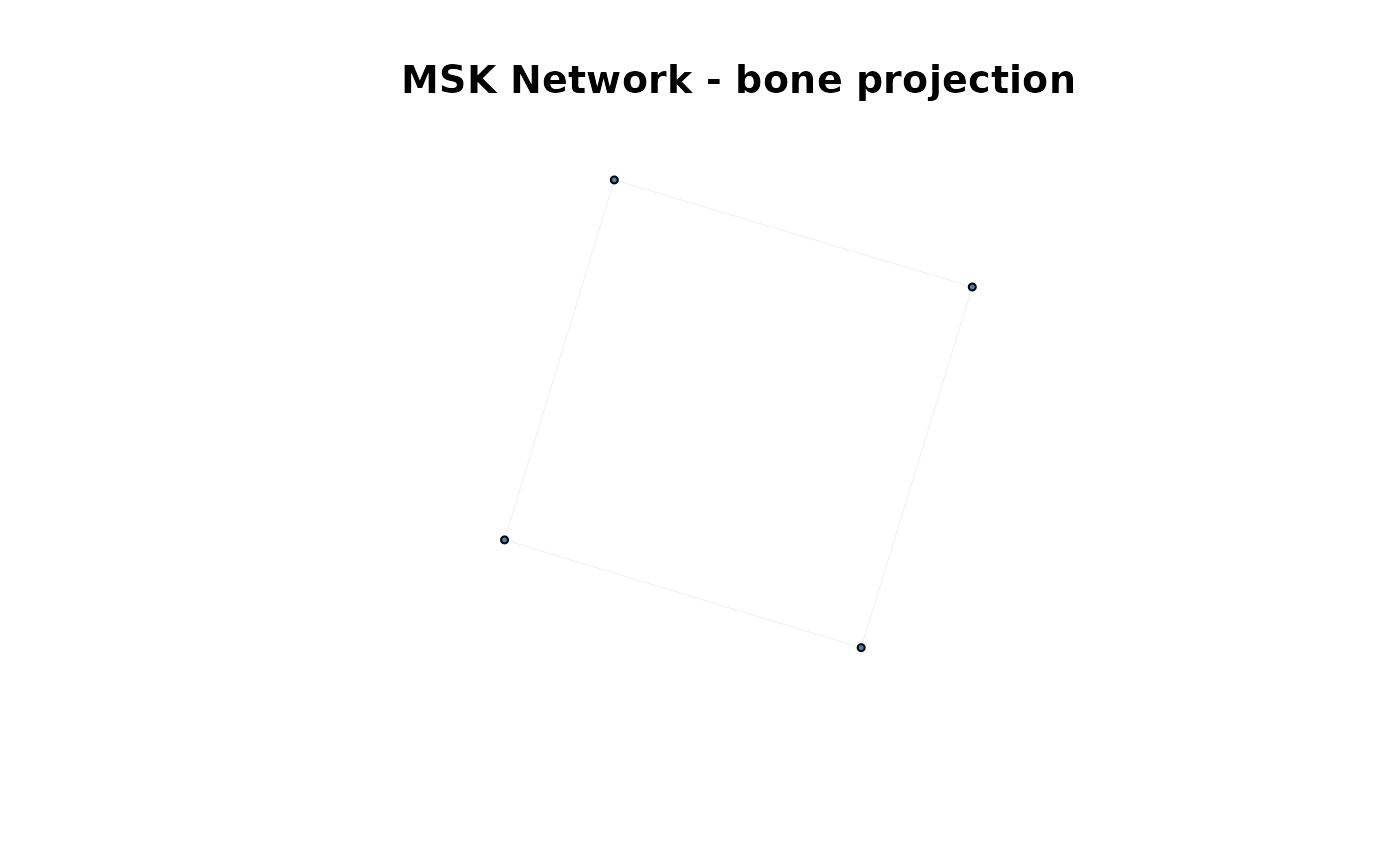

plotMSKNetwork(MSKHypergraph(C), type = "bone")
