Plot a skeleton frame in pseudo-3D

Renders one frame of a skeleton in a perspective-like 3D projection using a lightweight base graphics backend (no external 3D dependency required).

Usage

plotSkeleton3D(
  pe,
  skeleton,
  frame = 1,
  azimuth = 35,
  elevation = 20,
  distance = 6,
  show_labels = FALSE,
  point_col = "steelblue",
  segment_col = "gray40",
  point_cex = 1.1,
  segment_lwd = 1.5,
  main = NULL,
  draw = TRUE
)

Arguments

pe

A PhysioExperiment object with position_x, position_y, and position_z assays.

skeleton

A SkeletonModel object.

frame

Integer frame index.

azimuth

View azimuth angle in degrees.

elevation

View elevation angle in degrees.

distance

Perspective distance (larger = weaker perspective).

show_labels

Logical; if TRUE, draws keypoint labels.

point_col

Point color.

segment_col

Segment color.

point_cex

Point size.

segment_lwd

Segment line width.

main

Plot title. If NULL, auto-generated.

draw

Logical; if TRUE, draws to current graphics device.

Value

Invisibly returns a list with projected coordinates and view parameters.

References

Winter DA (2009). "Biomechanics and Motor Control of Human Movement." 4th ed. John Wiley & Sons.

See also

plotSkeleton() for 2D skeleton visualization, projectTo2D() for manual coordinate projection.

Examples

sk <- define_skeleton("BODY_25")
labels <- sk$keypoints$label
set.seed(42)
nk <- length(labels); nf <- 10
mk <- function(b) matrix(rep(b, each = nf), nf)
px <- mk(rnorm(nk, 0, 0.3)); py <- mk(rnorm(nk, 0, 0.3))
pz <- mk(seq(1.8, 0, length.out = nk))
colnames(px) <- colnames(py) <- colnames(pz) <- labels
pe <- PhysioExperiment(assays = S4Vectors::SimpleList(
    position_x = px, position_y = py, position_z = pz),
  colData = S4Vectors::DataFrame(label = labels, type = rep("keypoint", nk)),
  samplingRate = 30)

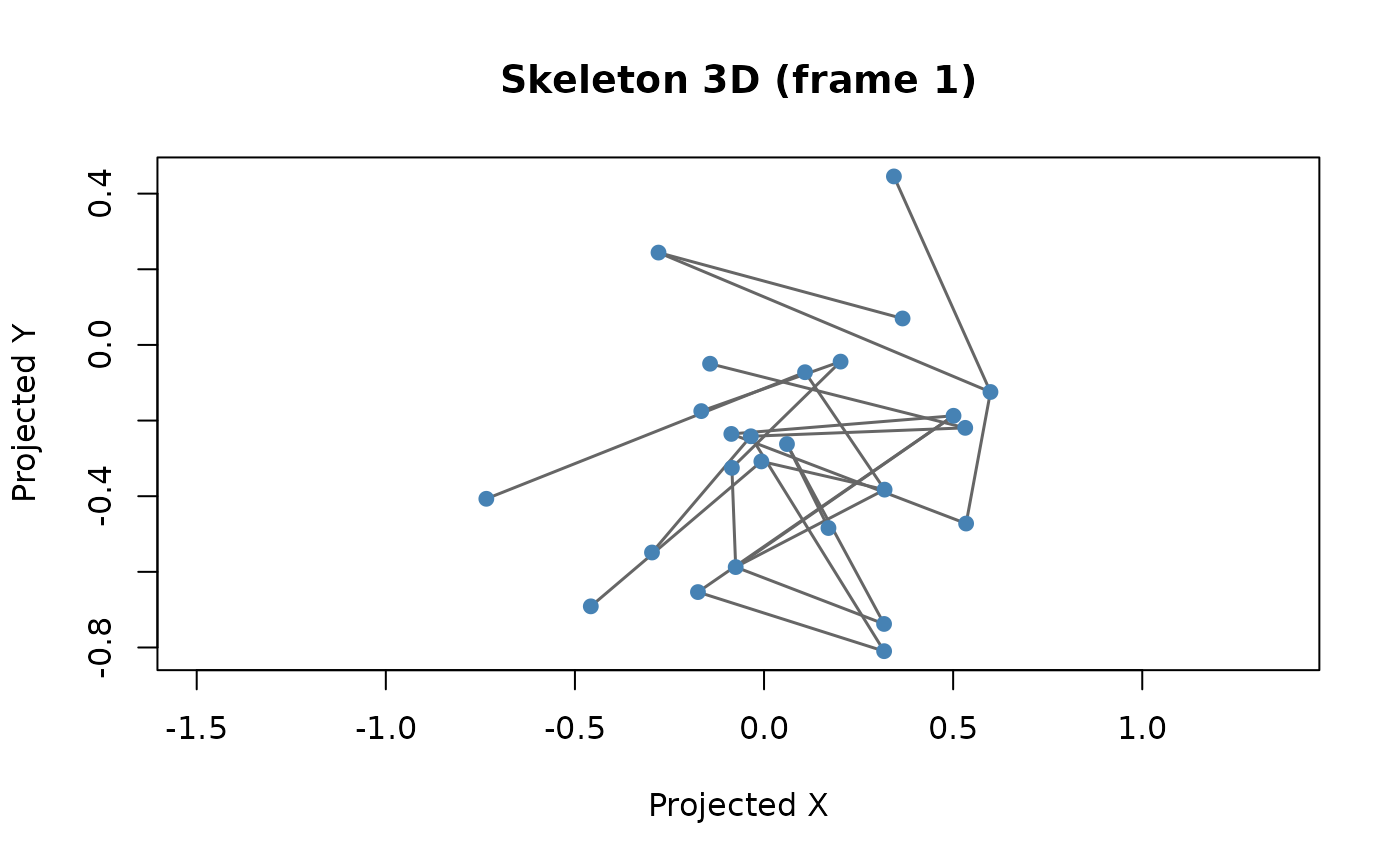

plotSkeleton3D(pe, sk, frame = 1)
